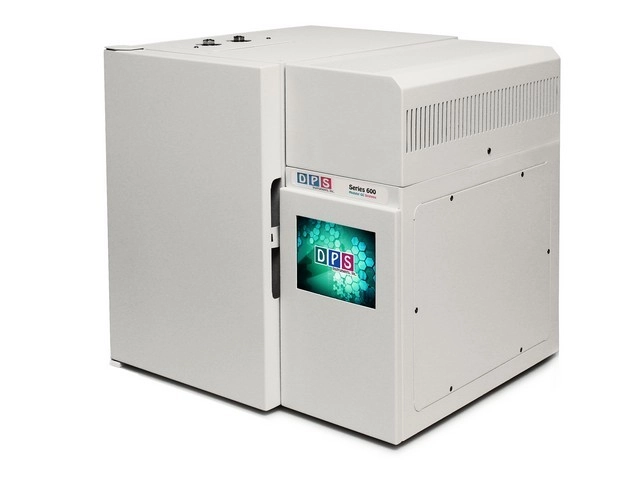

Gas chromatograph DPS 600

The DPS 600 Series GC systems are the world's only moduler GC systems. GC Modules can be mixed to and matched to make 100's of cost effective, application specific configurations for any GC method. With 7 detectors to choose from, on-Column or Split/Splitless injectors, and an Autosampler interface.
The DPS 600 Series GC Systems are new kindd of GC. They encompass a state of art space saving expandable chassis at their core. Our plug-and-play modular components allow for unprecedented performance, and yet all of our GC Systems are easier to build, maintain, and upgrade in the field.

The intelligence of the 600 Series GC Systems are locked safely in microprocessors, where our proprietary Digital Sample Processing routines control the temperatures and gas pressures to tighter specyfications than ever before.
The DPS 600 Series GC systems specifications are on par with biggest selling GC's in the market, yet they are smaller, lighter, faster, more intelligent, and have good pricing.

DPS 600 gas chromatograph plays a critical role in quality control of chemistry, medicine and food industries, and also applicable to quarantine, environment protection, quality supervision, oil, petrochemical industry, forensic analysis, agriculture and commodity inspection.

Additional Info

Model: DPS 600 Gas Chromatograph
Detector: Possibility to install 1-4 detectors from among available - FID: Flame Ionization Detector (100 pg detection limit); - PID: Photoionization Detector (10 pg detection limit); - HID: Helium Ionization Detector (100 pg detection limit); - NPD: Nitrogen Phosphorus Detector (20 pg detection limit) - TID: Thermoionic Detector (20 pg detection limit) - BCD: Bromine Chlorine Detector (10 pg detection limit); - FPD: Flame Photometric Detector (10 ng Sulfur, 10 pg Phosphorus detection limits).
Pressure control: up to 6 electronic pressure controlers for atmospheric pressure and temperature compensation. EPC pressure control with 0,1 kPa set point resolution.
Injector: 1 or 2 installed Split/Splitless and on-column injectors Standard liners, fittings and septum multiple pressure ramps with 0,1 kPa set-point resolution
Temperature range: Ambient to 400°C column oven(s) independent control of column oven
Heating: up to 100oC per/min. oven ramp
Communication and control: Control using color touch screen or from computer level
Data transmittion: Bi-directional communication with data system Analog and digital signal outputs Start, stop and GC ready output signals Optional autosampler control software
Software: PeakSimple analysis software available as an option
Weight: approx. 25 kg
Dismensions: 45 x 45 x 45 cm
Optional equipment: Retrofitting with an autosampler (liquid, headspace, all in one). A wide selection of generators gases (hydrogen, nitrogen, combined stations).
