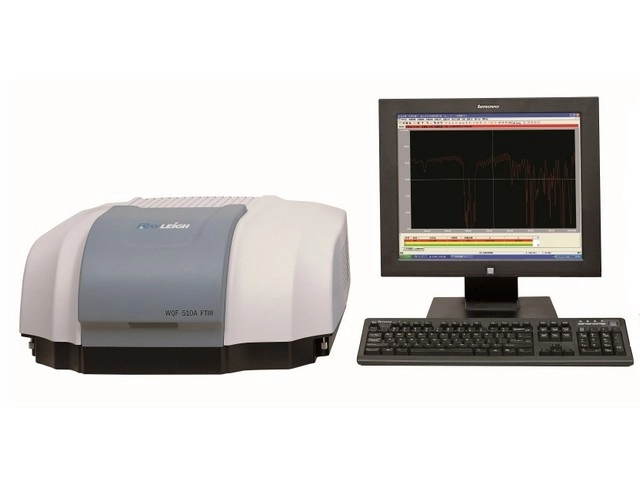

FTIR spectrometer WQF-510A / 520A

FTIR spectrometer WQF-510A / 520A

Spectrometer WQF 510A / 520A is a Fourier transform laboratory spectrophotometer IR (FT-IR), equipped with a unique Michelson interferometer. The spectrophotometer is controlled by a computer, switching between internal and an external light beam allows the use of special accessories such as IR microscope.

Sampling chamber is large enough to accommodate different types of snaps, we have to choose: a diamond ATR snap, ATR snap with a ZnSe crystal, scattering snap, flow cell for liquid samples, gas cuvette and IR microscope. There is possibility to buy IR spectra libraries in the field of the selected application.

Additional Info

Model: WQF-510A / 520A FTIR spectrometer
Spectral range: 7800 to 400 cm-1
Resolution: better than 0.85cm-1 (WQF 510), better than 0.5cm-1 (WQF520)
Precision: +/- 0.01cm-1
The scanning speed: 0.2-2.5 cm-1 / sec, automatically adapted to the type of detector or manually for a particular application
Signal to noise ratio: better than 15000: 1
Beam splitter: Ge / KBr
IR source: External, air-cooled
Detector: DTGS, MCT (optional)
Data collection system: PC
Software: Specialized FT-IR software contains all the basic procedures for operating the spectrophotometer
IR spectra library: 11 basic IR libraries to choose from
Dimensions: 63 × 52 × 24 cm
Weight: 20 kg
Microscope: Minimum sample size of 100 microns (with DTGS detector) and 20 microns (with detector MCT) Methods of measurement: transmission and reflectance The analysis of samples: non-destructive
