Oil baths
Oil baths thermostat samples at temperatures higher than water — up to 210°C — by using oil as the heat carrier. They are the choice for chemical syntheses, reactions at elevated temperatures and processes where water would already boil. The range includes analogue and digital control, OvanTherm H thermostat versions and a recirculating pump model. Tanks from 5 to 45 litres, with a heating element in corrosion-resistant steel.
Oil baths — available models
Recirculating oil bath with an immersion thermostat
The BU212E recirculating oil bath with an immersion thermostat and a 6 L/min pump — it thermostats oil to 200°C at ±0.1°C resolution and pumps it to an external system. A 12 l tank, a drain tap for quick emptying and a carrying handle.
- Recirculation pump 6 L/min, max pressure 200 mbar
- Oil thermostatting to 200°C, ±0.1°C resolution
- 12 litre tank, 2000 W heating power
- LCD display with current and set temperature
Oil baths with analogue control
Oil baths with analogue control for work at elevated temperatures — four tank capacities (5–45 l), a range up to 210°C and ±1°C stability. A heating element in corrosion-resistant steel alloy and an optional lid with reduction rings.
- Four models — tanks 5, 12, 20 and 45 litres (B205E–B245E)
- Temperature range up to 210°C, ±1°C stability
- Power from 600 to 3200 W depending on capacity
- Heating element in corrosion-resistant steel alloy

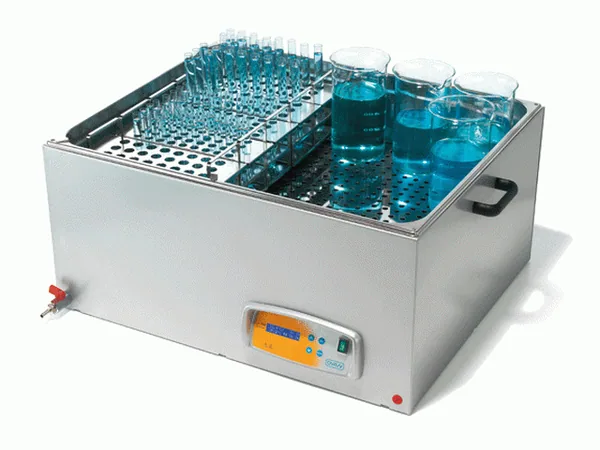

Oil baths with digital control
Oil baths with digital control for precise thermostatting — a range up to 200°C, ±0.5°C stability, an LCD display and a programmable delayed start within 24 hours. A hydraulic thermostat and four tank capacities from 5 to 45 litres.
- Digital temperature control up to 200°C, ±0.5°C stability
- LCD display with current and set temperature
- Programmable delayed start within 24 hours
- Hydraulic thermostat, tanks 5–45 l (B205-DE–B245-DE)
OvanTherm H oil baths with a thermostat
OvanTherm H oil baths with a thermostat and digital control — a range up to 200°C, a uniform 2000 W power and four tank capacities from 12 to 45 litres. A hydraulic thermostat, an LCD display and options for a gable lid and test-tube racks.
- Hydraulic thermostat with digital control up to 200°C
- Uniform 2000 W heating power across all models
- Four capacities — 12, 20, 27 and 45 litres (BH212E–BH245E)
- LCD display with current and set temperature
