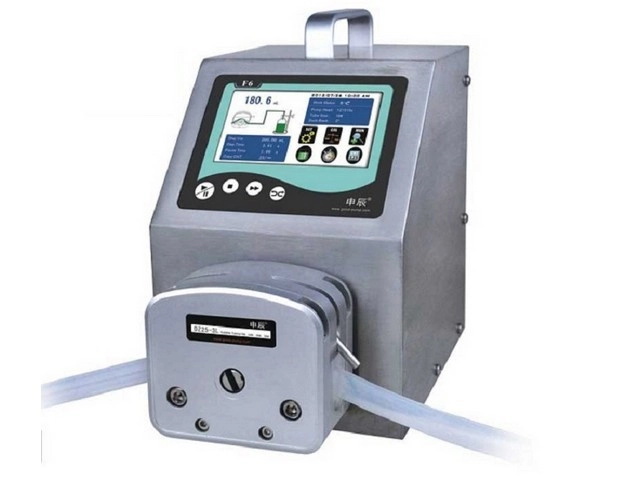

Dispensing Peristaltic Pumps F-series Intelligent Type

Dispensing peristaltic pumps F-series intelligent type are equipped with color touch-screen control, graphical interfaces, dynamic display filling status, filling parametric and system settings display in the same screen. The filling system is suitable for pollution-free, high-precision liquid filling. Intelligent type peristaltic pumps F series are widely used in laboratory and small scale production, such as dispensing culture medium, diagnostic reagent and cosmetics. Peristaltic pumps have advanced features: can store 60 commonly used filing modes, save users setting time, and improve working efficiency, back suction angle setting avoid liquid drop off when the pump stop working, real-time monitoring, dynamic display the results of the monitoring, intelligent calibration function, it will calibrate the filling volume before production to ensure the filling accuracy, help you to improve the working efficiency. 304 stainless steel housing, resist corrosion, no rust, conform to GMP sanitary request.

Additional Info

Technical specification:
Model F1 F3 F6
Flow rate 0.07-570 ml/min* 0.07-1330 ml/min* 0.07-2280 ml/min*
Speed range 1-150 rpm, cw/ccw 1-350 rpm, cw/ccw 1-600 rpm, cw/ccw
Speed resolution 0.1 rpm (1-100 rpm), 1 rpm (100-600rpm)
Dispensing volume range 0.1 - 9999.99 ml
Dispensing volume resolution 0.01 ml
Dispensing time 0.5 – 9999.99 s
Pause time 0.5 – 9999.99 s
Time resolution 0.01 s
Copy number range 1 – 9999.0
Back suction angle 0 - 360°
External control Start/stop, direction signal:

Passive switch signal, such as foot pedal switch; Active switch signal: 5V, 12V and 24V for option

Power supply
AC 220V±10%, 50Hz/60Hz
Working condition
Temperature 0 do 40 C°; Relative humidity < 80%
Power consumption
< 50 W
Dimension (LxWxH) 213x152x235mm
Net weight about 5kg
Adjustable pump head
YZ1515x, YZ2515x, MC series, SN series
