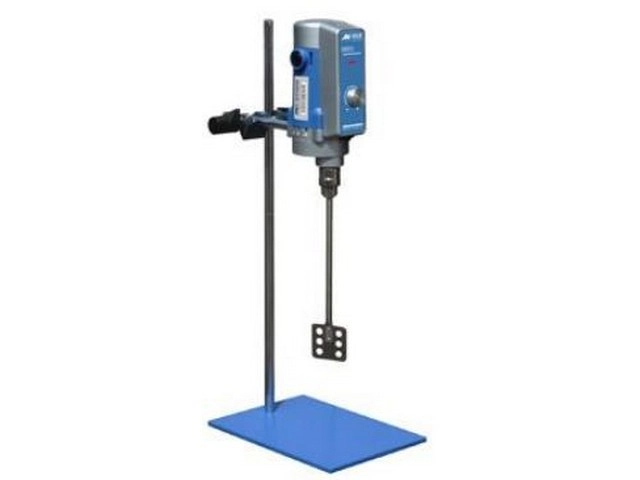

High speed mechanical stirrers AM-S series

High speed mechanical stirrers AM-S series for laboratorys are advanced, high speed mechanical stirrer with a stable, compact design, equipped with a micro-motor with speed control. Laboratory mechanical stirrer is suitable for mixing a liquid of low and high viscosity. The safe use with automatic overload protection. Start control system allows smooth and soft start to prevent spilling and splashing liquids.
Models "H" are equipped with digital display showing the speed of rotation.

The advantages of high-speed mechanical stirrers AM-S series is stable structure, easy operation and maintenance, protection against overload, precise speed control.

Stirrers are widely used in industrial, research, cosmetic laboratories for mixing and dispersing solid-liquid substances, liquid-liquid substances with different viscosity - from low to high. Suitable mixing different kinds of media with the possibility of using all from offered mixing rods (paddle, anchor, propeller rods).

Propellers

Additional Info

Technical specification:



Model AM200S-P AM300S-P AM200S-H AM300S-H
Input power 340 W 510 W 340 W 510 W
Output power 200 W 300 W 200 W 300 W
Max. torque 1.45 Nm 1.96 Nm 1.45 Nm 1.96 Nm
Display NO displayed value *10 rpm
Max. viscosity 17000cP 26000cP 17000cP 26000cP
Speed rotation range 50-1800 rpm
Speed rotation control variable
Dimensions 360 x 260 x 760 mm
Work conditions temperature: ≤ 40 ° C; relative humidity: ≤ 90%
Power source AC 220V, 50Hz
