Peristaltic pumps

Peristaltic pumps — available models

•

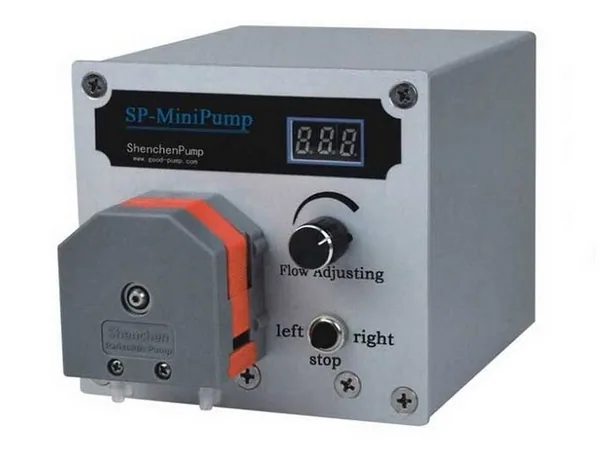

  SP and EM mini peristaltic pumps

  The SP and EM mini peristaltic pumps designed to work with other devices — small, with a stepper motor, a single- or dual-channel head and 24 V DC power. External control by 0–10 V, 4–20 mA and RS485 MODBUS at power consumption below 15 W.

  • Compact design for embedding in other devices
  • Single- or dual-channel head, stepper motor
  • External control by 0–10 V, 4–20 mA and RS485 MODBUS
  • 24 V DC power, consumption below 15 W
  →
•

  LabQ compact peristaltic pump

  The LabQ light peristaltic pump with a clear 2.4" LCD display — it weighs just 1.1 kg and fits in your hand, yet still handles a flow up to 326 ml/min with reversible direction. Ideal for small benches and frequent moving.

  • Very light and small — 1.1 kg, 188×128×135 mm
  • Clear 2.4" LCD display
  • Flow from 0.0033 to 326 ml/min, reversible direction
  • Speed up to 350 rpm, 0.1 rpm accuracy
  →
•

  ST-HandyPump portable peristaltic pump

  The ST-HandyPump portable peristaltic pump for fieldwork and sampling — compact, with a 0.96" OLED display and a flow up to 365 ml/min. A digital knob, reversible direction and intuitive one-hand operation.

  • Handy, portable design for fieldwork
  • Flow from 0.0033 to 365 ml/min, reversible direction
  • Control by a digital knob, settings via keys
  • 0.96" OLED display, speed up to 300 rpm
  →
•

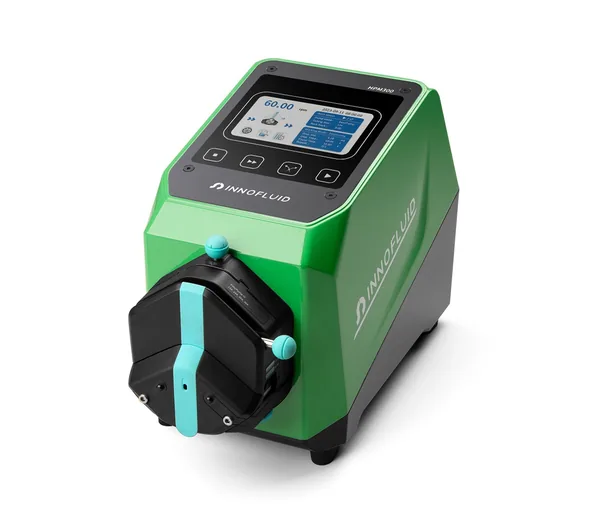

  HPM300 peristaltic pump (IP66)

  The HPM300 peristaltic pump with an elevated IP66 protection rating — an aluminium-alloy housing, a 4.3" touchscreen and a flow up to 1808 ml/min. External 0–10 V and 4–20 mA control and RS485 MODBUS for harsh, wet environments.

  • Elevated IP66 protection rating (dust and water)
  • Aluminium-alloy housing, ergonomic and easy to disinfect
  • 4.3" LCD touchscreen, time setting 0.1 s – 9999 h
  • Flow up to 1808 ml/min, 0–10 V and 4–20 mA control
  →
•

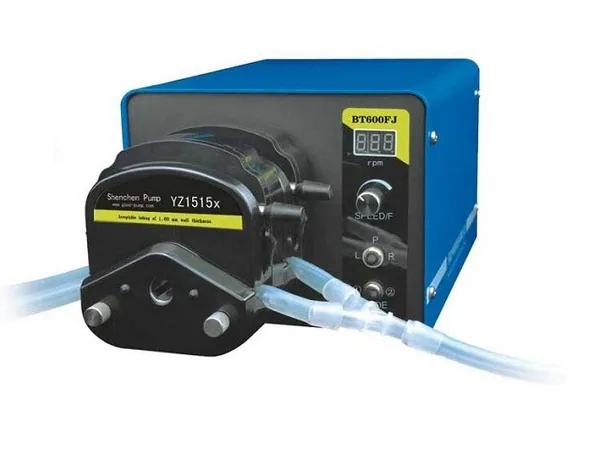

  BT-FJ dosing peristaltic pumps

  Basic dosing pumps with an operating-parameter memory — the BT100FJ, BT300FJ and BT600FJ models repeat a set dose from 1 to 999 times at a flow up to 2880 ml/min. The display shows both speed and dosing frequency.

  • Automatic memory of dosing parameters
  • Dose repetition from 1 to 999 cycles
  • Flow from 0.07 to 2880 ml/min (BT100FJ/300FJ/600FJ)
  • Speed 1–150 / 350 / 600 rpm, reversible direction
  →
•

  F-series intelligent dosing pumps

  The F1, F3 and F6 intelligent dosing pumps for precise volumetric batching — a dose from 0.1 to 9999.99 ml with 0.01 ml resolution and dosing time from 0.5 s. Flow up to 2280 ml/min and smooth direction control.

  • Volumetric dosing from 0.1 to 9999.99 ml
  • Dose resolution of 0.01 ml — accurate, repeatable portions
  • Dosing time from 0.5 to 9999.99 s
  • Flow from 0.07 to 2280 ml/min (F1/F3/F6)
  →
•

  LabK1 and LabK3 compact peristaltic pumps

  The LabK1 and LabK3 compact peristaltic pumps for precise microflows — flow from as little as 0.004 ml/min, control by a digital knob and a clear 0.96" OLED display. The small housing fits on any cramped bench.

  • Precise microflows — from as little as 0.004 ml/min (LabK1)
  • Control by a digital knob, settings via keys
  • Clear 0.96" OLED display
  • Speed 0.1–150 rpm, 0.1 rpm accuracy
  →
•

  LabS1 and LabS3 compact peristaltic pumps

  The LabS1 and LabS3 compact peristaltic pumps combine a small footprint with a wide flow range — from 0.0024 up to 930 ml/min (LabS3). Control by a digital knob, a 0.96" OLED display and reversible operation.

  • Wide flow range — from 0.0024 to 930 ml/min (LabS3)
  • Compact housing despite the large stream
  • Control by a digital knob, settings via keys
  • 0.96" OLED display, reversible direction
  →
•

  BT-M peristaltic pumps

  Basic transfer peristaltic pumps with simple knob control — the BT100M, BT300M and BT600M models cover a flow from 0.07 to 2280 ml/min. Reversible direction, a 3-digit LED speed display and an RS485 interface at an undemanding price.

  • Three models — flow from 0.07 to 2280 ml/min (BT100M/300M/600M)
  • Smooth speed control by knob, reversible direction
  • Speed 1–150 / 350 / 600 rpm, 0.1 rpm precision
  • Three-digit LED display of current speed
  →
•

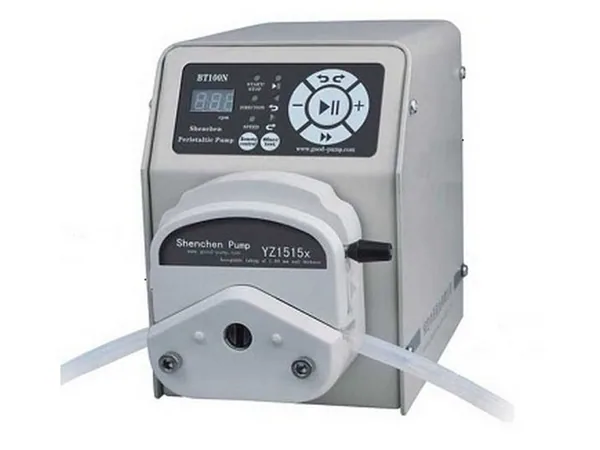

  BT-N peristaltic pumps

  BT-N laboratory transfer pumps with external control and a membrane keypad — flow from 0.035 to 2280 ml/min, a fast-fill button and 0–5 V, 0–10 V and 4–20 mA inputs. High torque and low vibration for a stable flow.

  • External control — 0–5 V, 0–10 V, 4–20 mA inputs and RS232
  • Membrane keypad and a fast fill/empty button
  • Flow from 0.035 to 2280 ml/min (BT100N/300N/600N)
  • High torque and low vibration level
  →
•

  BT-S peristaltic pumps

  Economical BT-S transfer pumps with MODBUS communication and high precision — the BT101S, BT301S and BT601S models cover a flow from 0.006 to 2300 ml/min with repeatability better than 0.5%. Four-digit LED display and an RS485 interface.

  • RS485 interface with MODBUS — easy integration with SCADA/PLC
  • Flow precision better than 0.5%
  • Flow from 0.006 to 2300 ml/min (BT101S/301S/601S)
  • Speed 0.1–150 / 350 / 600 rpm, reversible direction
  →
•

  LabN-series intelligent peristaltic pumps

  The intelligent LabN1, LabN3 and LabN6 pumps with run-time programming and pressure control — flow from 0.000166 to 2280 ml/min and time setting from 0.1 s to 9999 h. Digital-knob control for repeatable, long cycles.

  • Run-time programming from 0.1 s to 9999 h
  • Very wide flow range — from 0.000166 to 2280 ml/min
  • Outlet pressure control (depending on tubing)
  • Digital-knob control, 0.1 rpm accuracy
  →
•

  F6 industrial dosing pumps

  F6 industrial dosing pumps for large, precise portions — the F6-3L, F6-6L and F6-12L models reach a flow up to 12,000 ml/min while dosing by volume from 0.1 to 9999.99 ml with 0.01 ml resolution. For production-scale filling and batching.

  • High capacity — flow up to 12,000 ml/min (F6-3L/6L/12L)
  • Volumetric dosing from 0.1 to 9999.99 ml, 0.01 ml resolution
  • Speed up to 600 rpm, 0.01 rpm accuracy
  • Dosing time from 0.5 to 9999.99 s
  →
•

  M6 industrial peristaltic pumps

  M6 industrial peristaltic pumps for efficient liquid transfer — the M6-3L, M6-6L and M6-12L models reach a flow up to 12,000 ml/min with simple knob and key control. Robust construction for continuous work in production.

  • High capacity — flow up to 12,000 ml/min (M6-3L/6L/12L)
  • Speed 0.1–600 rpm, 0.1 rpm accuracy
  • Knob and key control, LED display
  • Robust construction for continuous work
  →
•

  V6 industrial transfer pumps

  V6 industrial transfer pumps for continuous transfer of large streams — the V6-3L, V6-6L and V6-12L models reach up to 12,000 ml/min with accuracy better than 0.5%. A 0–360° back-suction function prevents dripping at stop.

  • High capacity — flow up to 12,000 ml/min (V6-3L/6L/12L)
  • 0–360° back-suction function against dripping
  • Flow accuracy better than 0.5%
  • Speed 0.1–600 rpm, 0.1 rpm accuracy
  →
•

  V-series intelligent transfer pumps

  The intelligent, energy-efficient V1, V3 and V6 transfer pumps for a stable, continuous stream — flow from 0.007 to 2880 ml/min, 0.01 rpm resolution and accuracy better than 0.5%. Low power consumption below 40–60 W.

  • High speed resolution of 0.01 rpm
  • Flow accuracy better than 0.5%
  • Flow from 0.007 to 2880 ml/min (V1/V3/V6)
  • Low power consumption — below 40–60 W depending on the model
  →
•

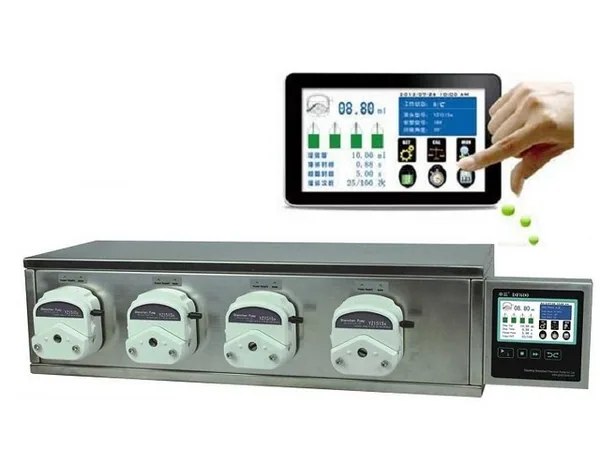

  CF600 and DF600 peristaltic filling systems

  The CF600 and DF600 multi-channel peristaltic filling systems — one touchscreen controller runs up to 16 filling units, dosing by volume from 0.1 to 9999.99 ml. A 0–360° back-suction function eliminates dripping on the line.

  • One touchscreen controller runs up to 16 filling units
  • Split version (CF600) and integrated version (DF600)
  • Volumetric dosing from 0.1 to 9999.99 ml, 0.01 ml resolution
  • 0–360° back-suction function against dripping
  →
