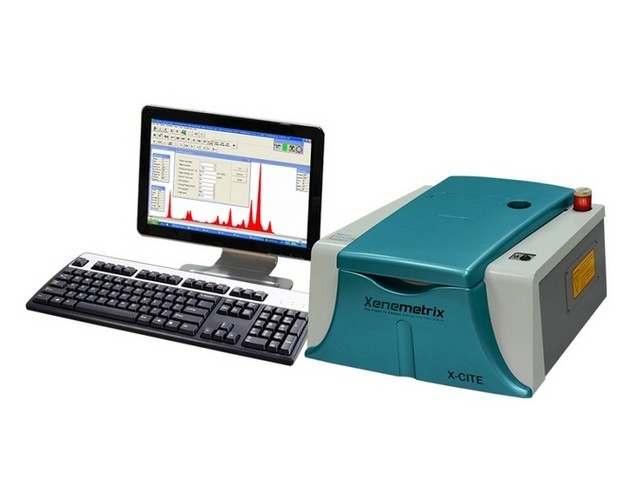

Spectrometer XRF X-CITE

X-Cite is a basic spectrometer uses XRF technology to analyze samples without destroying them for universal applications. Advanced computational capabilities are integrated with the analyzer in order to ensure a consistent analysis and data transfer. It can be widely used in stationary laboratories and field ones in the enhanced casing options - ROBUST.

Primary applications: measurements of S in oils and fuels, Pb in gasoline, Ni and V in crude oil, S, Ni and V in the residual oil, the S in coke or coal, Mg, P, S, Ca, Ba, Zn, Mo in lubricating oils. In the forensic laboratories to identify traces found on the glass, steel, remnants of gunshots, car paint debris and ingredients for the production of drugs. Measurements in the cement industry: Na, Mg, Al, Si, S, K, Ca, and Fe in cement and clinker according to ASTM C-114.

XRF spectrometer X-CITE is also an excellent tool for the identification of the active ingredients in cosmetics and pharmaceuticals: Cr, Mn, Fe in the eye shadows; Fe, Ti and Zn foundation; Bi, Al, Ca, Mg in the antacids, laxatives; Analysis of personal care products (deodorants, preparations for hair care, teeth), antibacterial preparations; Ag, I and Zn in contact lenses; Ti and Zn in preparations with filters UVA / UVB rays.

X-CITE is also intended for measurements in the mining industry Zn metal, Zn powder, the production of ZnO; Fe metal, Fe powder, production of Fe2O3; -Al bauxite mining; Analyses of kaolin clay - pottery; tin ore, silver ore.



Lear more? Visit: www.learnxrf.comwww.learnxrf.com

Additional Info

Model: X-CITE laboratory EDXRF spectrometer
Application: Science and research, Industry, Alloys analysis, Geology, Fuel analysis
Analysis range: sub ppm - 100% depending on the matrix
Detector: SDD
Energy resolution: approx. 125 eV
Measured elements: from Na (sodium) to Fm (fermium) with the possibility of extension from F (fluorine)
Measurement atmosphere: Air, Helium (optional), Vacuum (optional)a
Test time: 60-200 s
Tube power: 40kV, 18W
Power: 230V AC
Forms of samples: solid, powder and liquid
Weight: approx. 50 kg
Sample chamber dimensions: 220 x 220 x 50 mm
Dimensions: 550 x 550 x 320 mm
Additional informations: Standard configuration: rotary feeder for 8 positions, nEXT software with elements of FP. Available as options: CCD camera, advanced software FP, sample spinner, tray for 16 positions.
