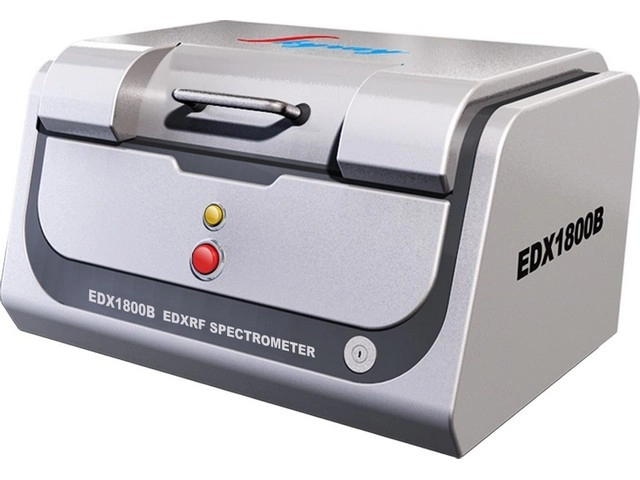

Spectrometer XRF EDX1800B
-
font size
decrease font size
increase font size
XRF spectrometer EDX1800B is X-ray fluorescence analyzer designed for analysis of compliance with the RoHS / WEEE directive. Measurements are fast and fully non-destructive, so the device is suitable for the measurement of semi-finished and finished products. It finds particular use in the quality control of electrical and electronic products, in the toy industry and ceramic industry. The software has a convenient function PASS / FAIL when performing measurements of the presence of hazardous elements such as mercury, cadmium, lead and chromium. In addition, you can customize spectrometer to analyze the chemical composition of the alloys, then it can be applied also in the recycling and sorting of metals and metal industry.
Additional Info
| Model: | EDX 1800B, EDXRF RoHS and jewerly analyzer | Application: | Alloy analysis, RoHS | Analysis range: | 2 ppm - 99,9%; detection limit of Cd/Pb/Cr/Hg/Br reaches 1ppm | Detector: | SI-PIN | Energy resolution: | approx. 165 eV | Measured elements: | from S to U, factory calibration for Hg, Cd, Pb, Cr, Br | Measurement precision: | 0,05% (main element content more than 96%); 0,1% | Measurement atmosphere: | Air | Test time: | 60-300 s | Tube power: | 50W | Power: | 230V AC | Forms of samples: | solid, powder and liquid | Dimensions: | 605 x 395 x 100 mm | Additional informations: | Standard configuration: the main unit with Si-PIN detector, laser sight, CCD camera and a computer with installed software analysis |
|---|
